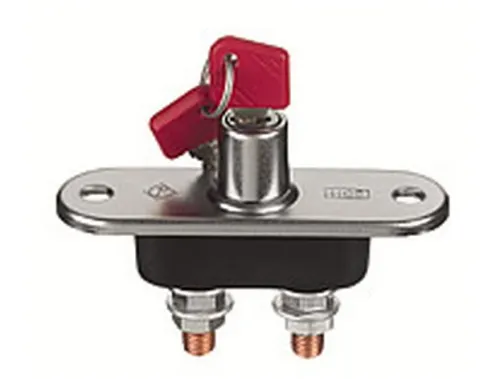

Batteryswitch 24V / 100A / 500A with key

Product no.: BCO500023

Battery switch 24V DC

M10 connector in copper

Operating temperature -40 ° C to + 85 ° C

Protection class: IP63 (= dust-proof and protected against falling water spray to 60° from the vertical)

Switching current: 24V = 100A

Switching current short-term operation (5 sec.) 500A

Key is to remove in both positions (on and off)!

Installation advice :

Do not expose terminals to water and dirt.

Relay with terminal to be mounted vertically.



Price:

39,50 EUR

19 % VAT incl. excl. Shipping costs
